- 1. Unplug battery charger

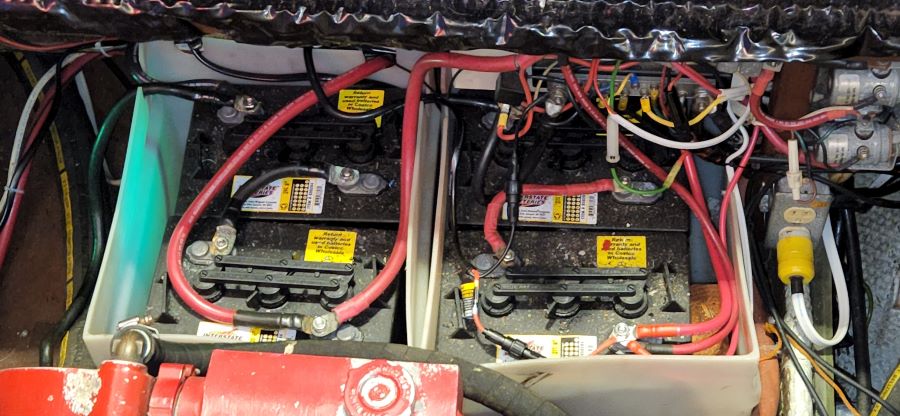

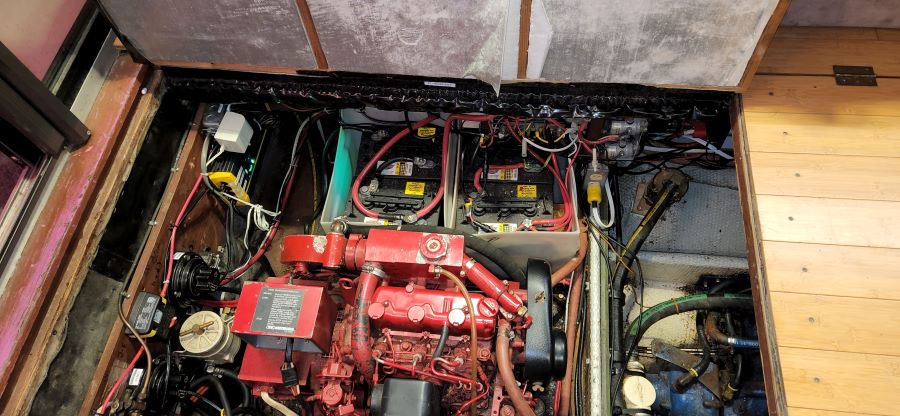

- 2. Remove the - to + jumper on aft battery pair (retain).
- 3. Remove the - to + jumper on fwd battery pair (retain).
- 4. Disconnect the two black negative conductors rom the outboard aft battery pair.
- 5. Disconnect the two red positive conductors from the inboard aft battery pair.
- 6. Remove aft inboard 6V battery.
- 7. Slide inboard aft 6V battery and remove.

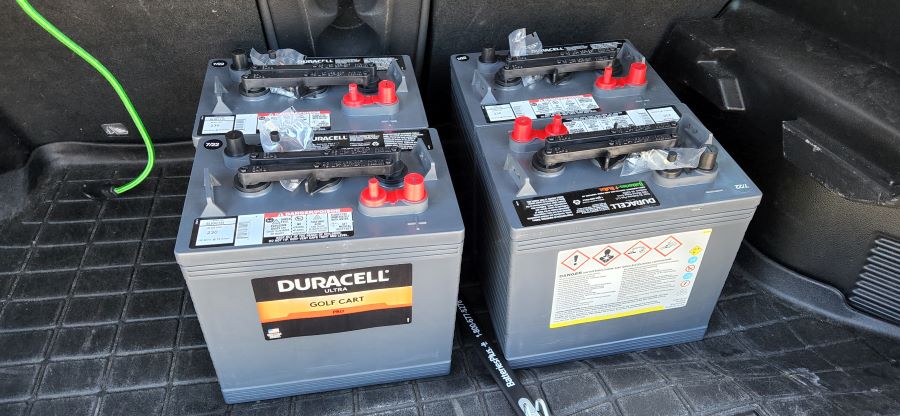

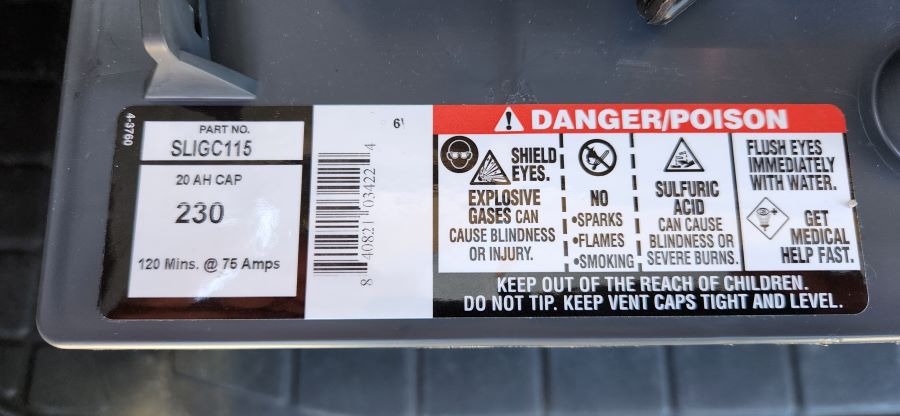

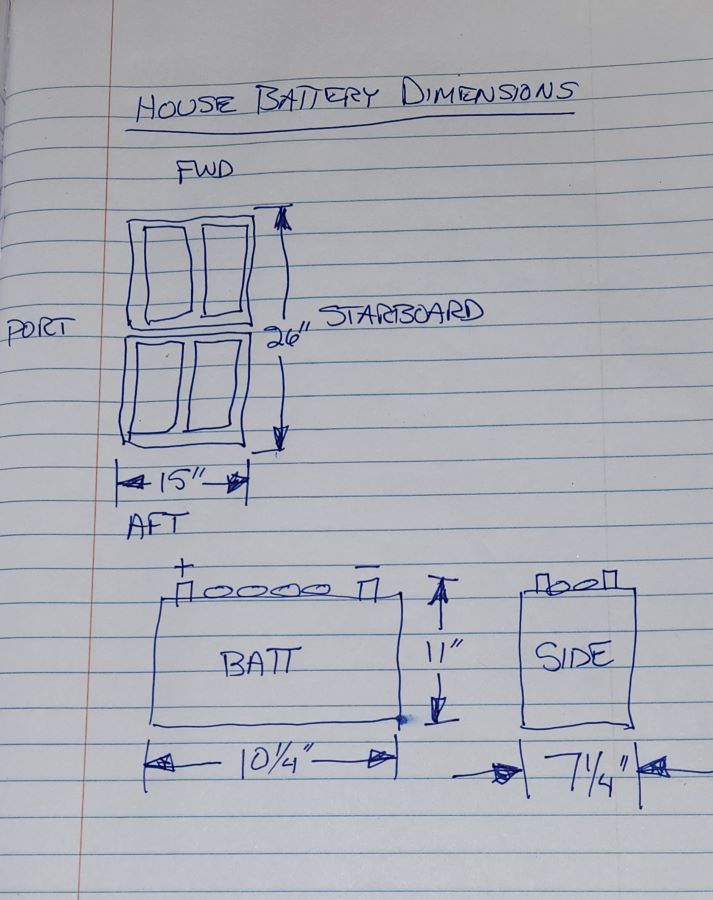

- 8. Install two new batteries in aft box.
- 9. Reconnect the two red conductors to the (+) terminal on the aft inboard battery.
- 10. Reconnect the two black conductors to the (-) terminal on the aft outboard battery.
- 11. Do not reinstall the (-) to (+) jumper yet.
- 12. Disconnect the (+) red conductors from the fwd inboard 6V battery.
- 13. Disconnect the (-) black conductors and the orange conductor from the fwd outboard 6V battery.
- 14. Remove fwd inboard 6V battery.
- 15. Slide inboard the fwd 6V battery and remove.
- 16. Install two new batteries in fwd box.
- 17. Reconnect the three red conductors to the (+) terminal on the fwd inboard battery.
- 18. Reconnect the black conductors and the orange conductor to the (-) terminal on the fwd outboard battery.
- 19. Reinstall the - to + jumper on aft battery pair.
- 20. Reinstall the - to + jumper on fwd battery pair.
- 21. Plug in the Battery Charger.
- 22. Verify Battery Charger operation.
|
